Agricultural

AGRICULTURAL PUMPING SYSTEMS

At TQ Electrical Engineering Services we provide a full range of pumping systems for the agricultural sector.

BOREHOLE PUMPS

At TQ Electrical Engineering Services we provide a large range of Ebara bore-hole pumps. In the last twelve months due to large scale expansion on dairy farms we have found the common pump and pressure vessel unsatisfactory in supplying water to meet the demands required. Therefore it is now becoming general practice to install 220v/400v pumps. This allows for larger pumps up to 10hp to be installed with a 220v electricity supply. This is possible by the use of inverters – these devices control the speed of the pump to maintain a constant pressure on the line at all times regardless of requirements. This system means less surges in pressure and also provides the most efficient method of pumping water available leading to savings in energy.

At TQ Electrical Engineering Services we will be happy to discuss any requirements you may have and follow up with a site visit upon request.

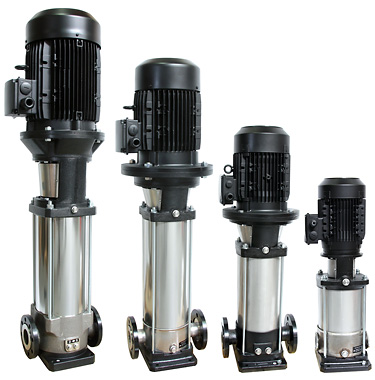

BOOSTER PUMPS

Ebara Booster pumps are required where pressure is low or if a bore hole pump is unable to meet the demands required. These pumps vary in size depending on the requirements of the herd. At TQ Electrical Engineering Services we would be happy to size the most efficient pumping system for your farm incorporating technologies like variable speed drives etc. to optimise the efficiency of your pumping system.

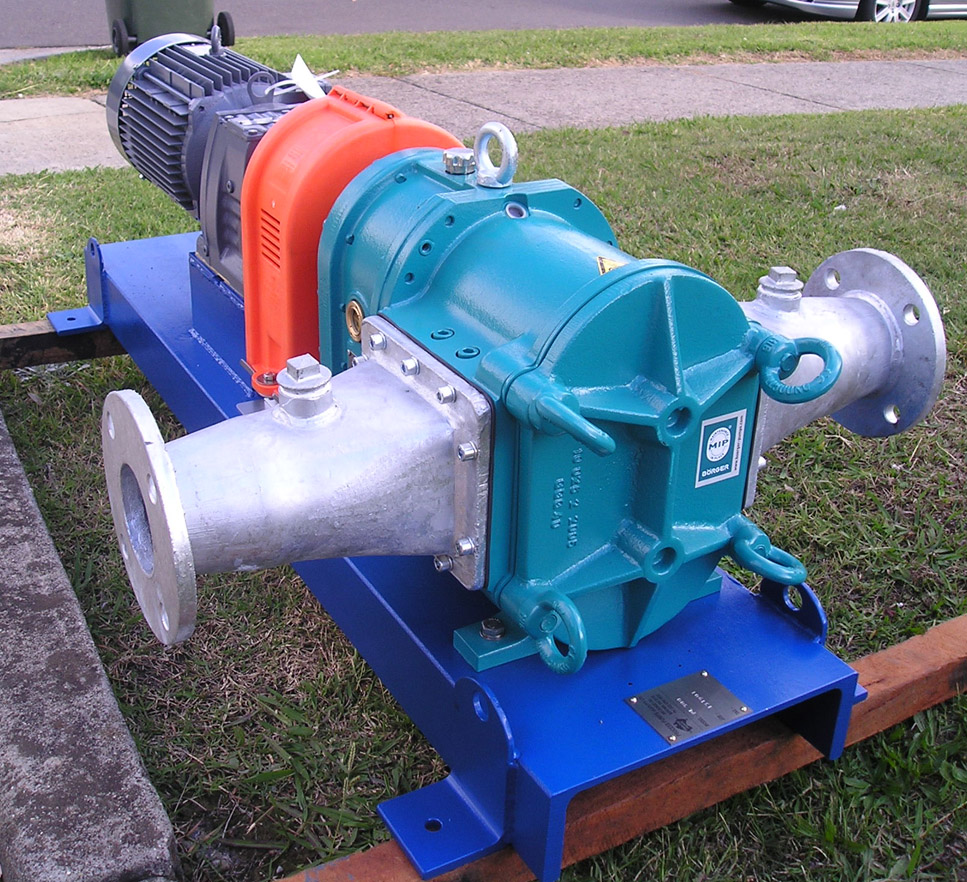

SLURRY PUMPS

At TQ Electrical Engineering Services we provide a full range of slurry pumps and macerators as all applications vary greatly. A site visit is usually required to determine the most appropriate system.


WASHING SYSTEMS

At TQ Electrical Engineering Services we provide a range of systems from:

  • High Volume Medium Pressure
  • Low volume high pressure
  • PTO and electric
  • Hot wash systems
  • Parlour wash down systems

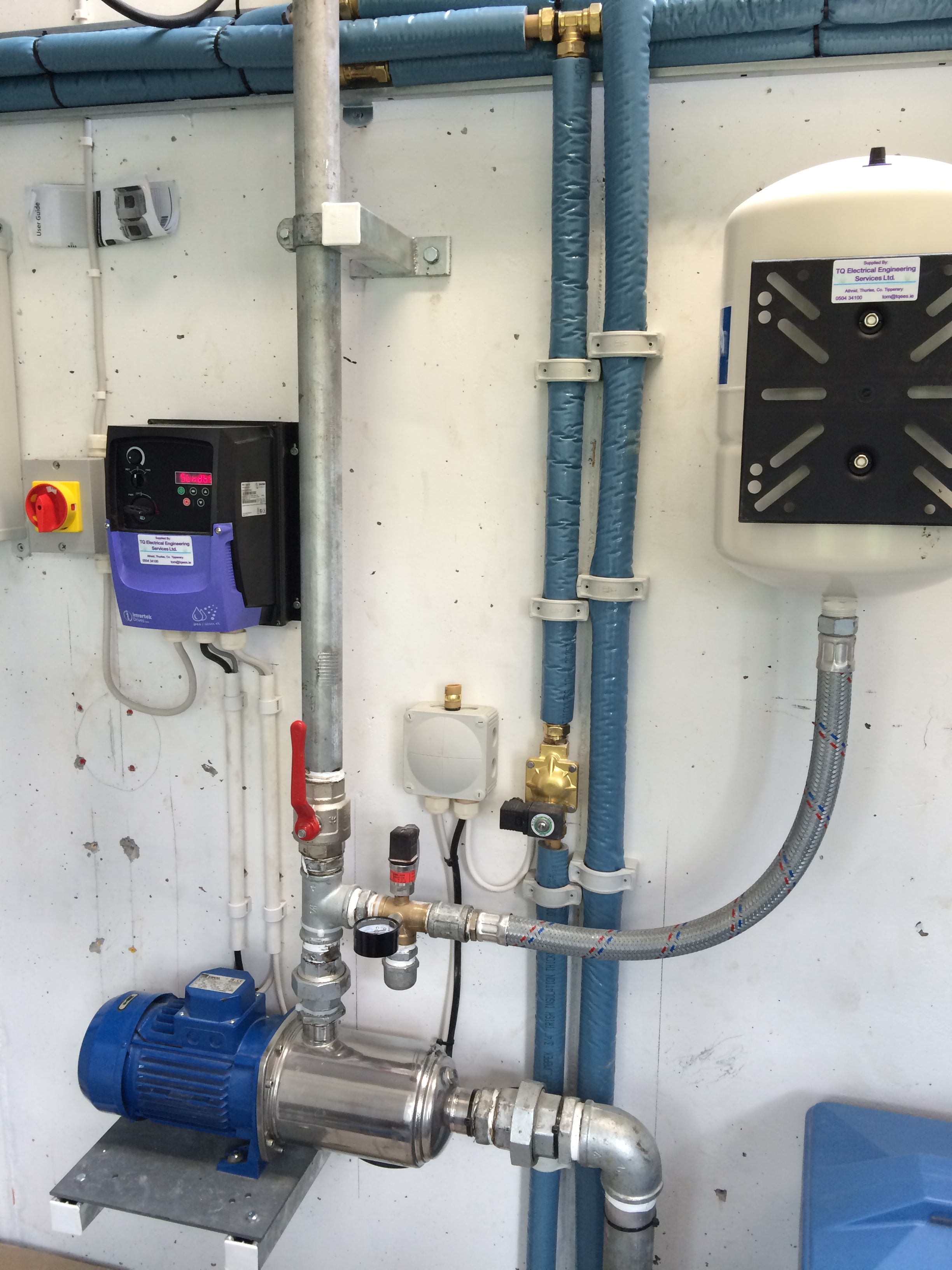

High Volume Medium Pressure Systems

High Volume Medium Pressure Systems are usually installed in the parlour to move large volumes of slurry quickly. They are also used to wash out factories and cattle transportation vehicles. Typical pressures are between 4.5 to 6.5 bar with flows up to 12m3 per hour.

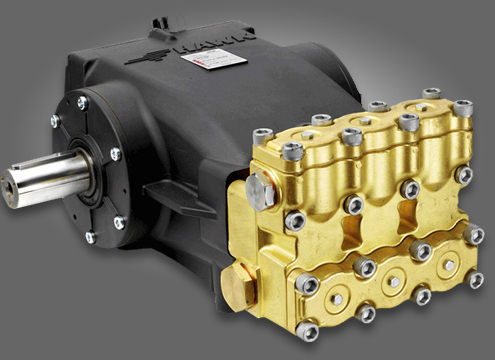

Low Volume High Pressure Systems

Low Volume High Pressure Systems are usually installed in the pit of the parlour. They can be hot or cold systems. Flow is usually up to 24 litres per minute with pressures up to 3000psi. These systems are especially useful for washing the equipment within the parlour while also saving considerable usage on water.


PTO & Electric Systems

PTO & Electric Systems - We are agents for Hawk PTO Washers and Lavor Hot and Cold High Pressure Electric Washers. We also stock a large range of spare parts for all leading makes of power washers and carry out service and repairs on all makes.

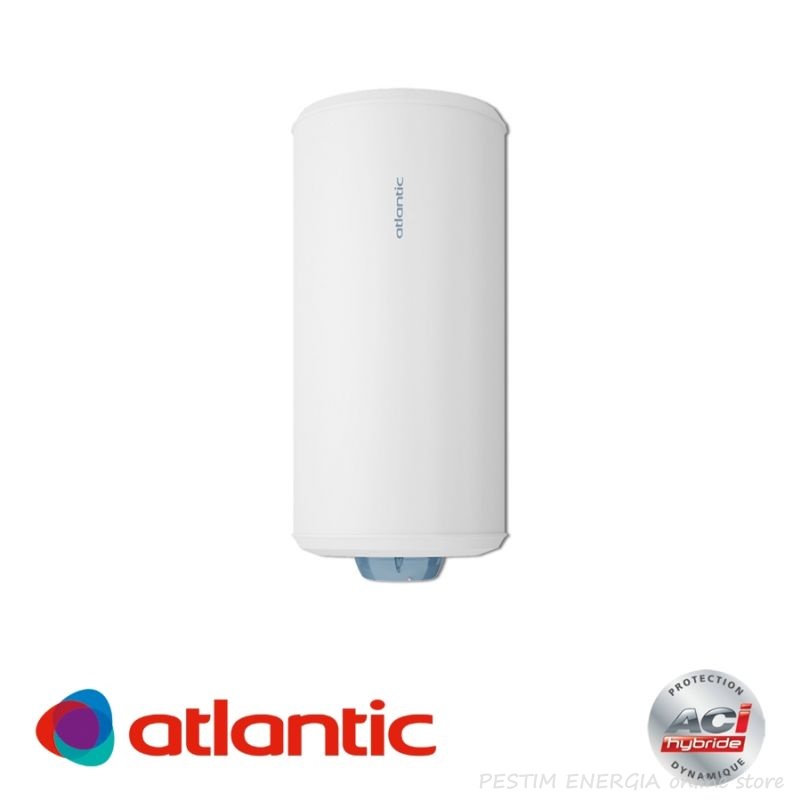

Parlour Hot Wash Systems

Parlour Hot Wash Systems are usually installed in the dairy. The hot wash system is usually installed with drop points in the pit and wash points within the building. This system enables good hygiene practices to be kept while milking and washing the parlour.


WATER TREATMENT SYSTEMS

At TQ Electrical Engineering Services we provide a full range of treatment systems to treat water for:

  • Hardness
  • Iron
  • Manganese
  • PH Levels
  • E.coli

The treatment of water is now an essential element in new dairy systems with automatic wash systems and bulk tanks performance being seriously deteriorated with hard water and iron etc. being present in the water. All water is different and the first point of call is to take a sample to ensure the most efficient system is installed. This can be organised by contacting our office.
